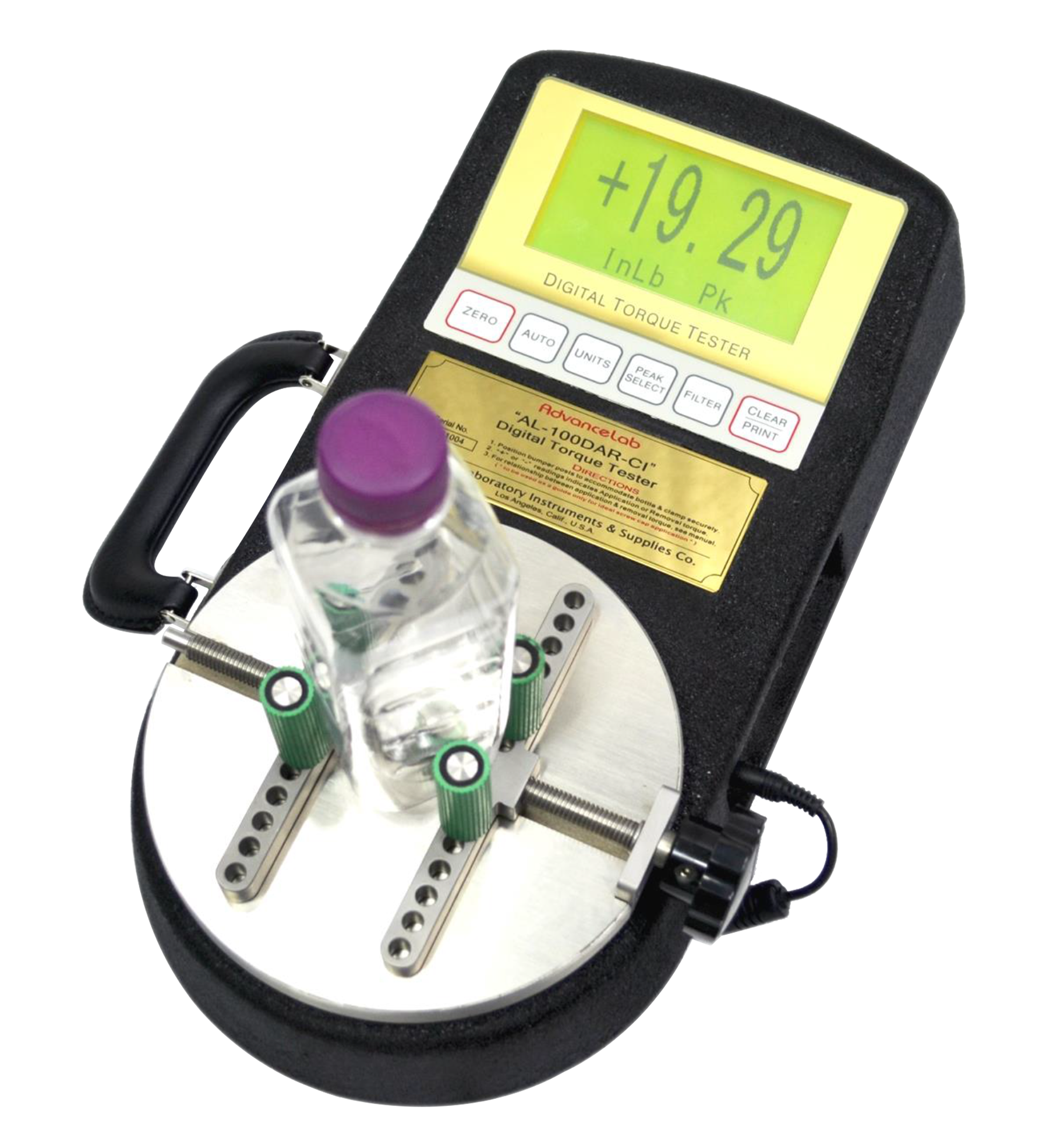

Digital Torque Tester


All Stainless Steel - Cast Aluminum; Rust/Corrosion Resistant Constructions
Huge Capacity Rechargeable Battery Lasting over 6-8 Hours of Continous Operation
Super Large Back-Lighted LCD Display








Product PDF

RS232 Communication, (USB adaptor included)
backlit LCD Display, Large 1-1/4"(32 mm) torque display characters
Instantaneous Peak, Absolute Peak, Continuous Tracking MODE selection
automatic function activate and send all readings automatically to connecting PC computer
Stainless Steel Testing Platform & Bumper Posts, eliminates problem with stubborn rusty & syrup build-ups, can now be very easily cleaned

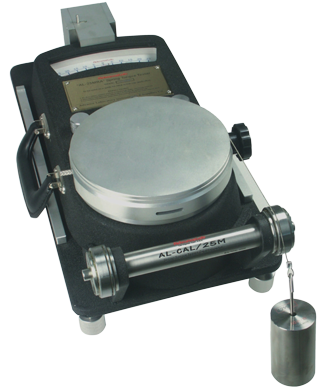

 Optional: Calibration Tool/Fixture
allows user to
perform in-house
calibration and adjustments


AL~25MAR 0-25 in-lb ; 0-3 Newton.Meter
AL-50MAR 0-50 in lb ; 0-6 Newton.Meter
AL-100MAR 0-100 in-lb ; 0-12 Newton.Meter



Technical Details
AL-50DAR - 50 in-lb AL-100DAR - 100 in-lb

Bottle Cap Testing :    CW - (clockwise) "Application"   or    CCW - (counter-clockwise) "Removal"

selection of Positive  or  Negative Polarity in each of of CW or CCW directions
resolution :    0.1 inch-lb  ;  1 Ft-lb  ;  0.1 dNM  ;  0.1Kg-cm  ;  0.01 NM
accuracy :  ±1% of full scale or reading



Shipping Weight: 20.5 lbs (9.3 kg) .   Packing: 20"(51cm) x 12.4"(31.5cm) x 9.5"(24cm)   . Net Weight: 17.5 lbs (7.95 kg)



........................................................................................... Recommend Products ............................................................................................

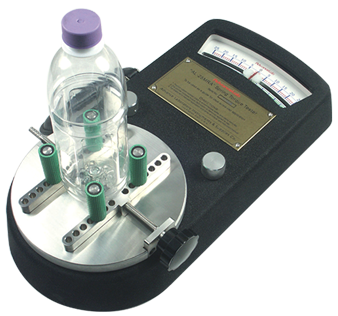

Spring Torque Tester
