ATC-2

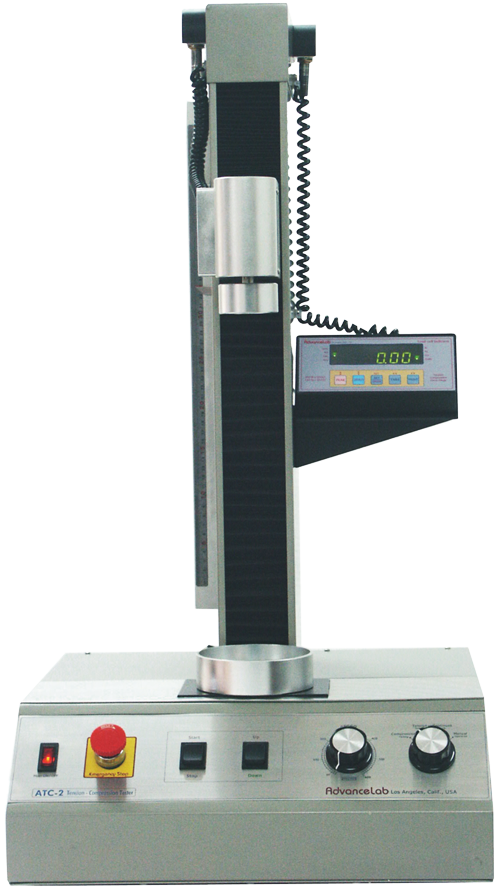

Bottle Top-Load Compression Crush Tester

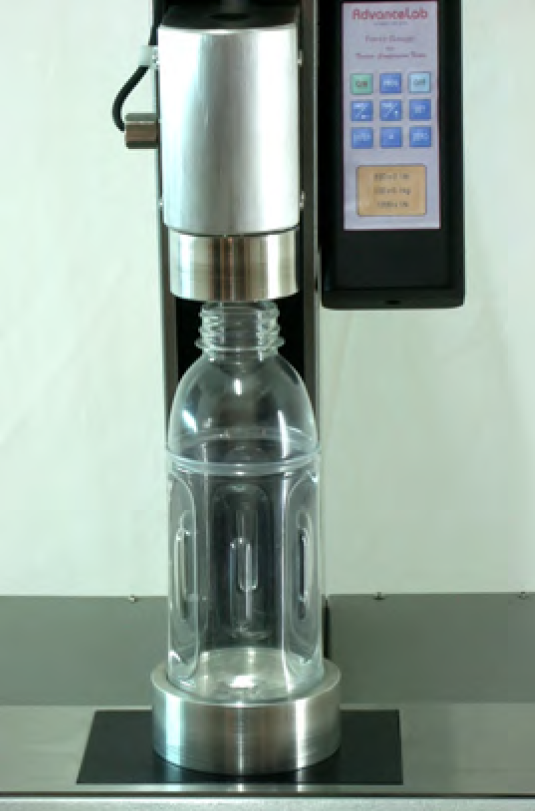

ATC-2, ATC-2S series overview ATC-2 Top Load Compression Test ATC-2 Tension Test ATC-2S Pilfer-Proof Cap Test ATC-2 Pull-Tab Test




Product PDF



High Precision Linear Actuation
Ball-Screw Motion Control

Electronic Motor Speed Controller
offers Reliable and Steady
test runs time after time.

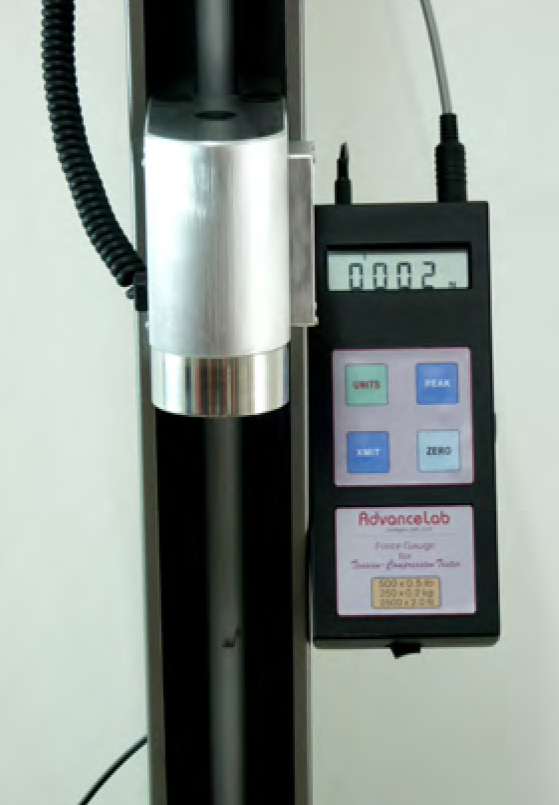

Full function accurate Fore Gauge
produces precise load readings
with lb, kg, or N(ewton) selections.
200 lb(100kg) standard Load-cell
500 lb(250kg) or others optional.
Peak Hold/Memory registration.

Independent Start-Stop-Jog and
Up or Down directional Controls;
switches to set testing Position.

 Multi-Mode Operations
Manual
Automatic
Single Cycle
Continuous Cycle

Optional:

Electronic Height Gauge lets user
pin-point, diagnose exact position
of Maximum Load, and point
of bottle deformation.

Additional software
analyze and plot graph
of full bottle loading profile.

RS-232 PC computer interface
for data logging and controls.
Shipping Weight: 112.5 lbs (51 kg) . Packing: 20.7"(52.5cm) x 18.7"(47.5cm) x 37"(94cm) . Net Weight: 90 lbs (41kg)
